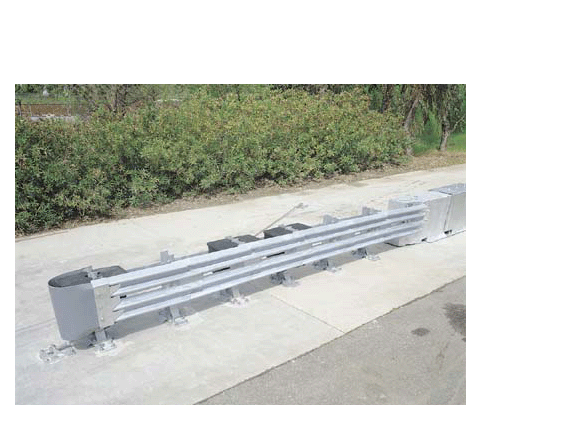

The QuadTrend 350 system is designed to protect the ends of concrete barrier. The QuadTrend 350 consists of interlocking telescoping Quad-Beam® fender panels, wide flange posts, slip bases, sand containers, back straps, and a redirecting cable. It meets NCHRP 350 Test Level 3 standards and can be classified as a re-directive, gating end terminal. When hit head-on, the system shall be capable of simultaneously collapsing and moving laterally to redirect an impacting vehicle away from the hazard. For angle impacts, the vehicle is redirected back onto the roadway.
SPECIFICATIONSMTOD# 911.190 Dimensions: .815m (H) x 9144mm 32" (H) x 30'
PRODUCT DOCUMENTSConstruction Specification for Concrete Barriers Construction Specification for Temporary Concrete Barriers Type X Installation Drawing - 9.1 length
