Standard Steel Beam Guide Rail
Guide rail is a longitudinal barrier system intended to lower the severity of an accident. Guide rail is designed to guide vehicles back to the roadway and away from potentially hazardous situations. Several types of guide rail are available – all are engineered to guide vehicular traffic on roads or bridges.
**Available in wood or steel posts and block options.
**Available in applications that require guide rail channel.
DIMENSIONS
Guide Rail: Standard W-Beam (12 ga.)
Guide Rail Height: 710mm (27-3/4”)
Post Height: 790mm (31”) – from grade level
Post Spacing: 1905mm (75”)
Profile: ~500mm (20”)
Crash Tested: NCHRP 350
SPECIFICATIONS
-
OPSD 912.130
-
OPSD 912.140
-
OPSD 912.101
-
OPSD 912.102
-
OPSD 912.103
-
OPSD 912.104
-
OPSS 721
Guide Rail Post & Block Options
M20 Guide Rail System
Guide rail is a longitudinal barrier system intended to lower the severity of an accident. Guide rail is designed to guide vehicles back to the roadway and away from potentially hazardous situations. Several type of guide rail are available – all are engineered to guide vehicular traffic on roads or bridges.
DIMENSIONS
Guide Rail: Standard W-Beam (12 ga.)
Guide Rail Height: 710mm (27-3/4”)
Post Height: 790mm (31”) – from grade level
Post Spacing: 1905mm (75”)
Profile: ~500mm (20”)
Crash Tested: NCHRP 350
SPECIFICATIONS
-
OPSD 912.130
-
OPSD 912.140
-
OPSD 912.101
-
OPSD 912.102
-
OPSD 912.103
-
OPSD 912.104
-
OPSS 721

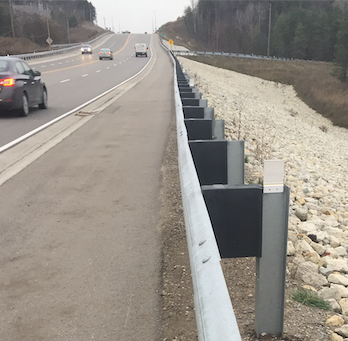

M30 Guide Rail System
Guide rail is a longitudinal barrier system intended to lower the severity of an accident. Guide rail is designed to guide vehicles back to the roadway and away from potentially hazardous situations. Several type of guide rail are available – all are engineered to guide vehicular traffic on roads or bridges.
DIMENSIONS
Guide Rail: M-Type guide rail (12 ga.)
Guide Rail Height: 790mm (31”)
Post Height: 790mm (31”) – from grade level
Post Spacing: 1905mm (75”)
Profile: ~560mm (22”)
Crash Tested: MASH
SPECIFICATIONS
-
OPSD 912.188
-
OPSD 912.189
-
OPSD 912.128
-
OPSD 912.129
-
OPSD 912.125
-
OPSS MUNI 721
-
SSP 721S05

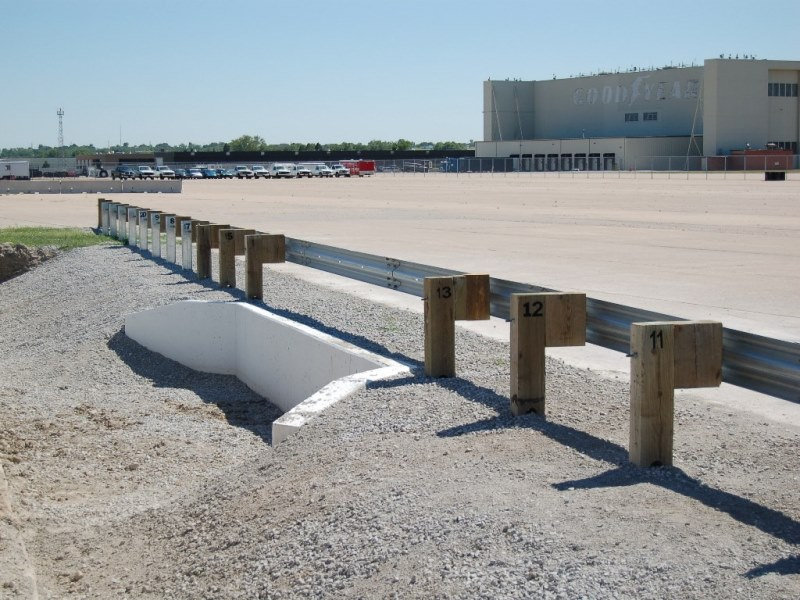

Steel Beam Guide Rail Treatments
Guide rail is a longitudinal barrier system intended to lower the severity of an accident. Guide rail is designed to guide vehicles back to the roadway and away from potentially hazardous situations. Several types of guide rail treatments are available – all are engineered to guide vehicular traffic on roads or bridges. Multiple long span, shallow culvert, and private entrance treatments are available.
DIMENSIONS
Guide Rail: Standard W-Beam (12 ga.)
Guide Rail Height: 710mm (27-3/4”)
Post Height: 790mm (31”) – from grade level
Post Spacing: 1905mm (75”)
Profile: ~500mm (20”)
Crash Tested: NCHRP 350
SPECIFICATIONS
-
OPSD 912.130
-
OPSD 912.140
-
OPSD 912.101
-
OPSD 912.102
-
OPSD 912.103
-
OPSD 912.104
-
OPSS 721
